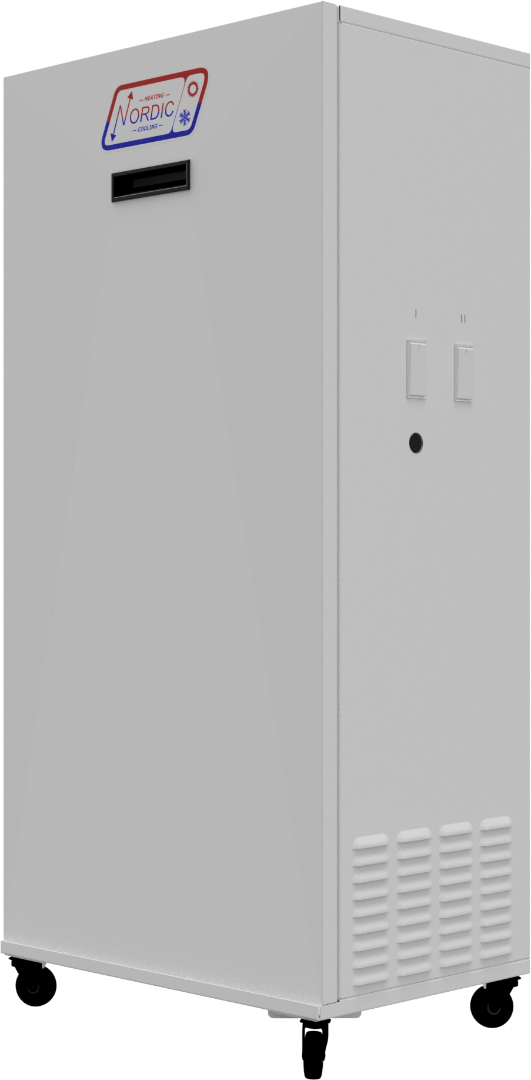

The CA-300 is an industrialized air purifier that can be used standalone to filter air in a room, or with an intake duct to draw air from another point or from an arm for point air cleaning.

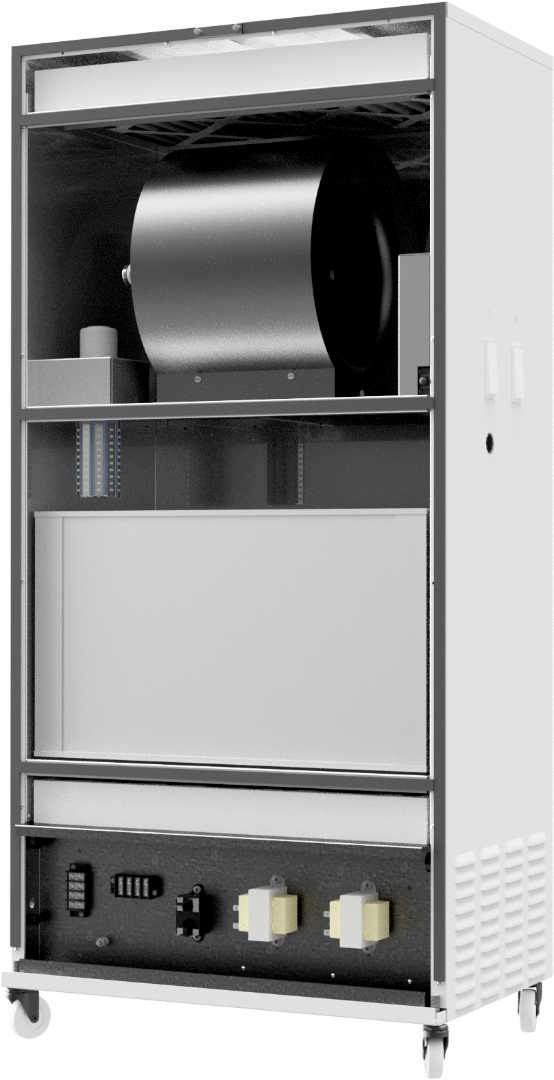

4 Stages of the Nordic Air Purifier
1. A pleated 2” MERV8 filter removes larger particles from the air stream. It will remove 90% of particles >2µm (microns) in size.
2. The air is next treated by an LED UV-C lamp with an optimized germicidal wave of 275 nm (as opposed to the 254 nm of mercury lamps).
3. Next, an 11.5” HEPA H14 filter removes 99.995% of remaining particles of size 0.3 µm, which is the hardest particle size to capture with a mechanical filter. Capture efficiency is even greater for smaller & larger particles. The large thickness reduces air pressure drop and increases service interval.
4. Finally, a 2” activated carbon filter removes chemicals and odors.
| Quick Facts | |
|---|---|
| Capability | Air Purification |
| Size | One Size |
| Confguration | Vertical |
| Certification | TUV |
