This large-scale geothermal liquid-to-water heat pump gathers heat from the ground and distributes it through large commercial buildings via in-floor heat or fan coils. The process can also be reversed to provide cooling in the summer time.

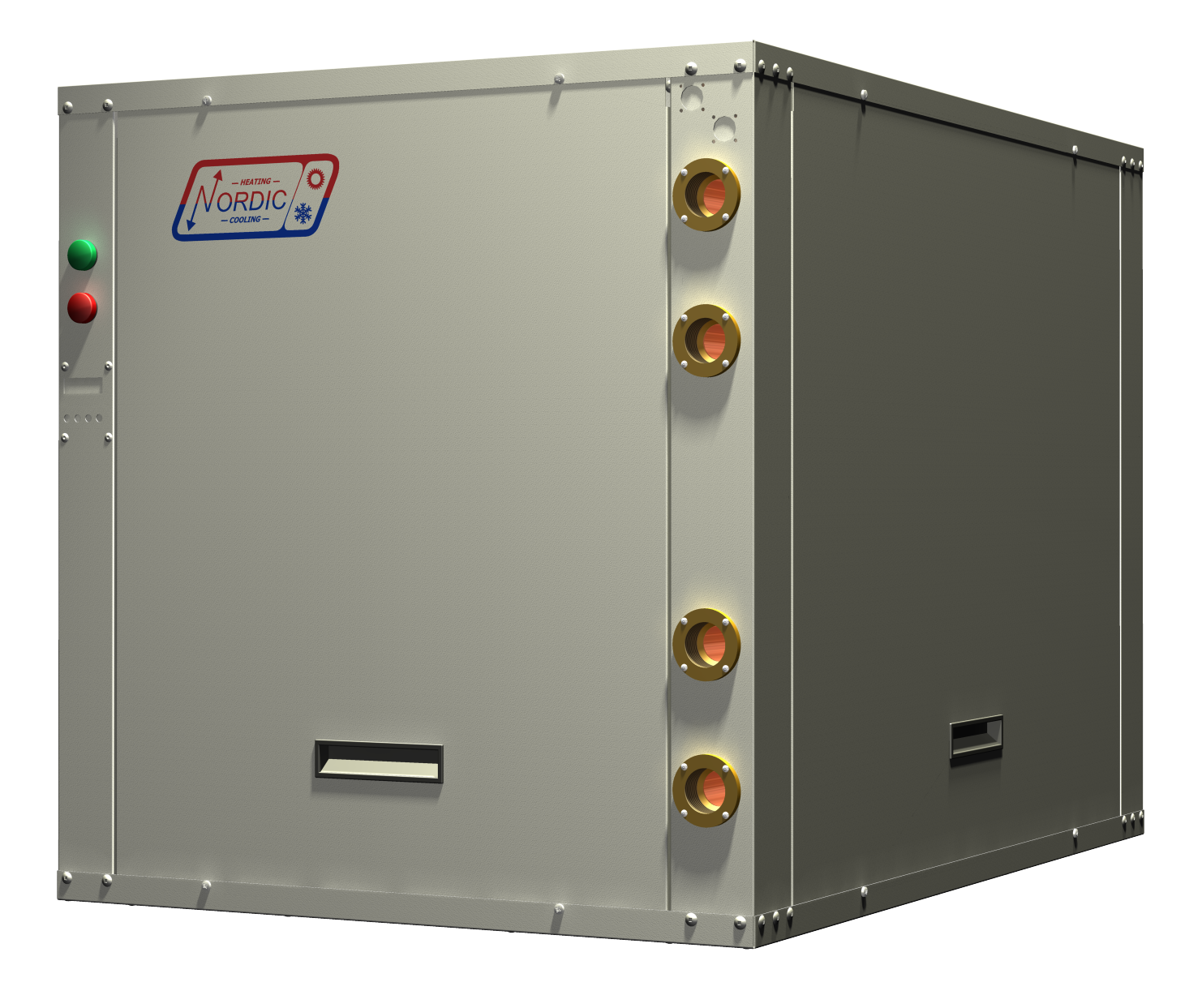

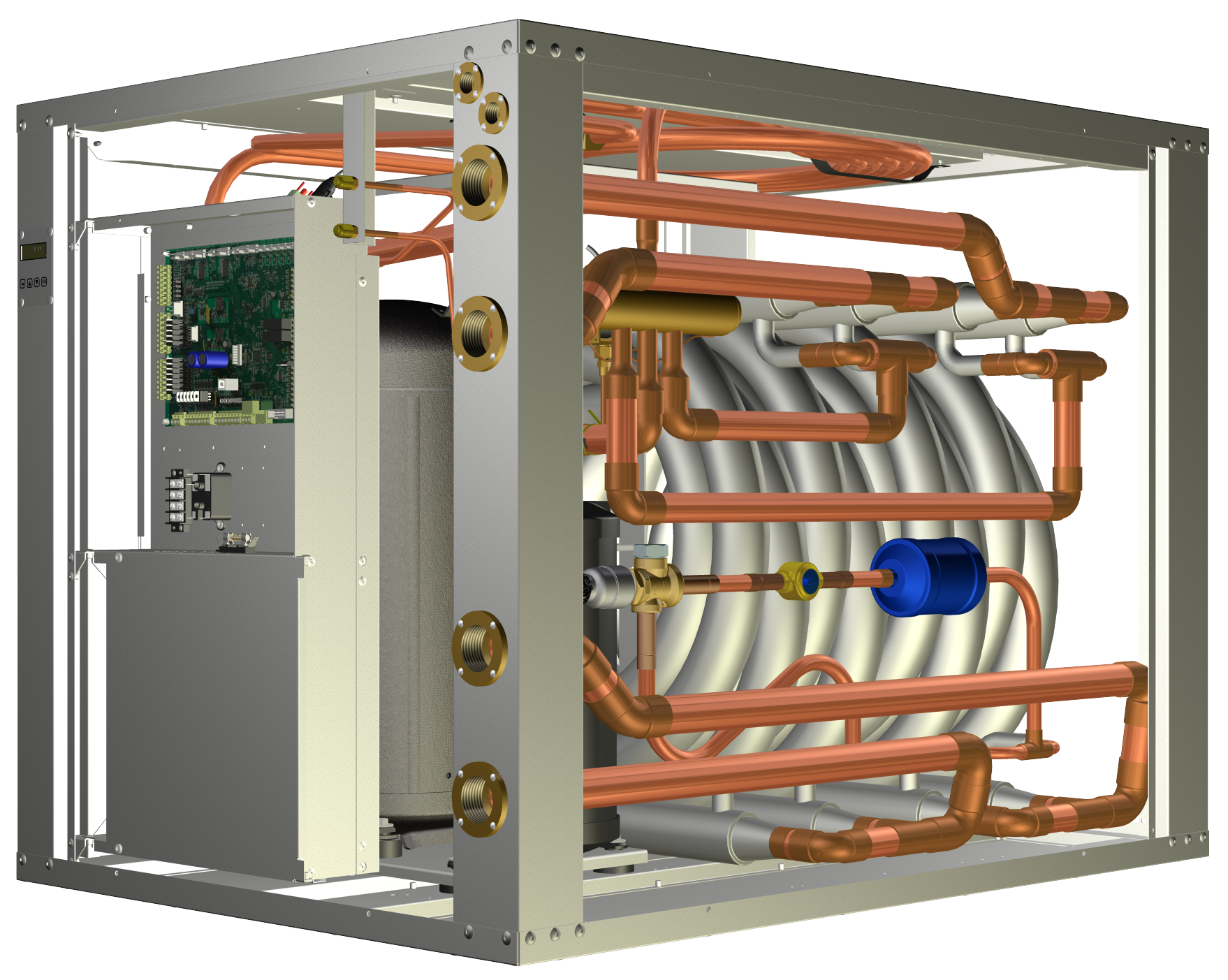

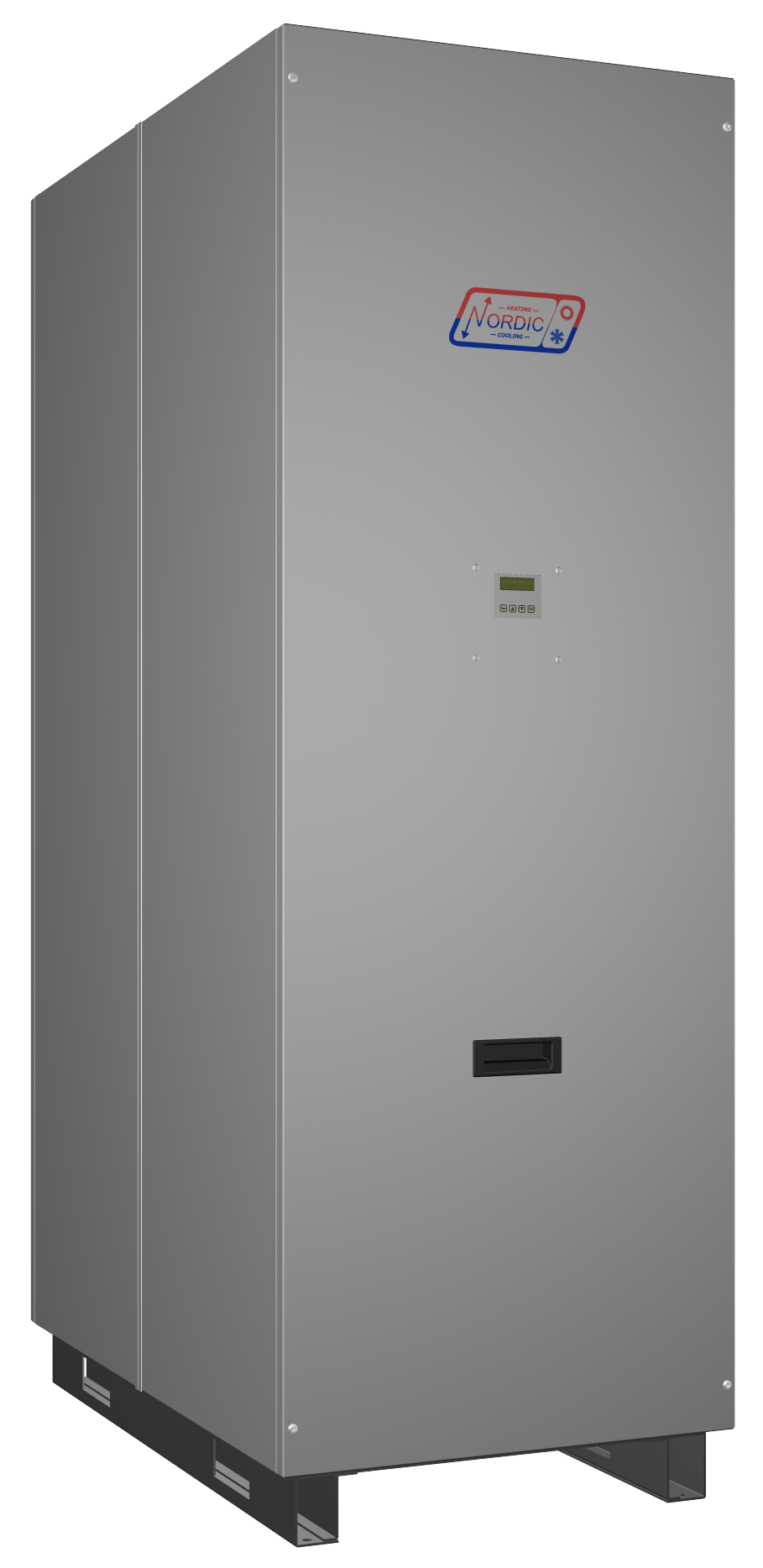

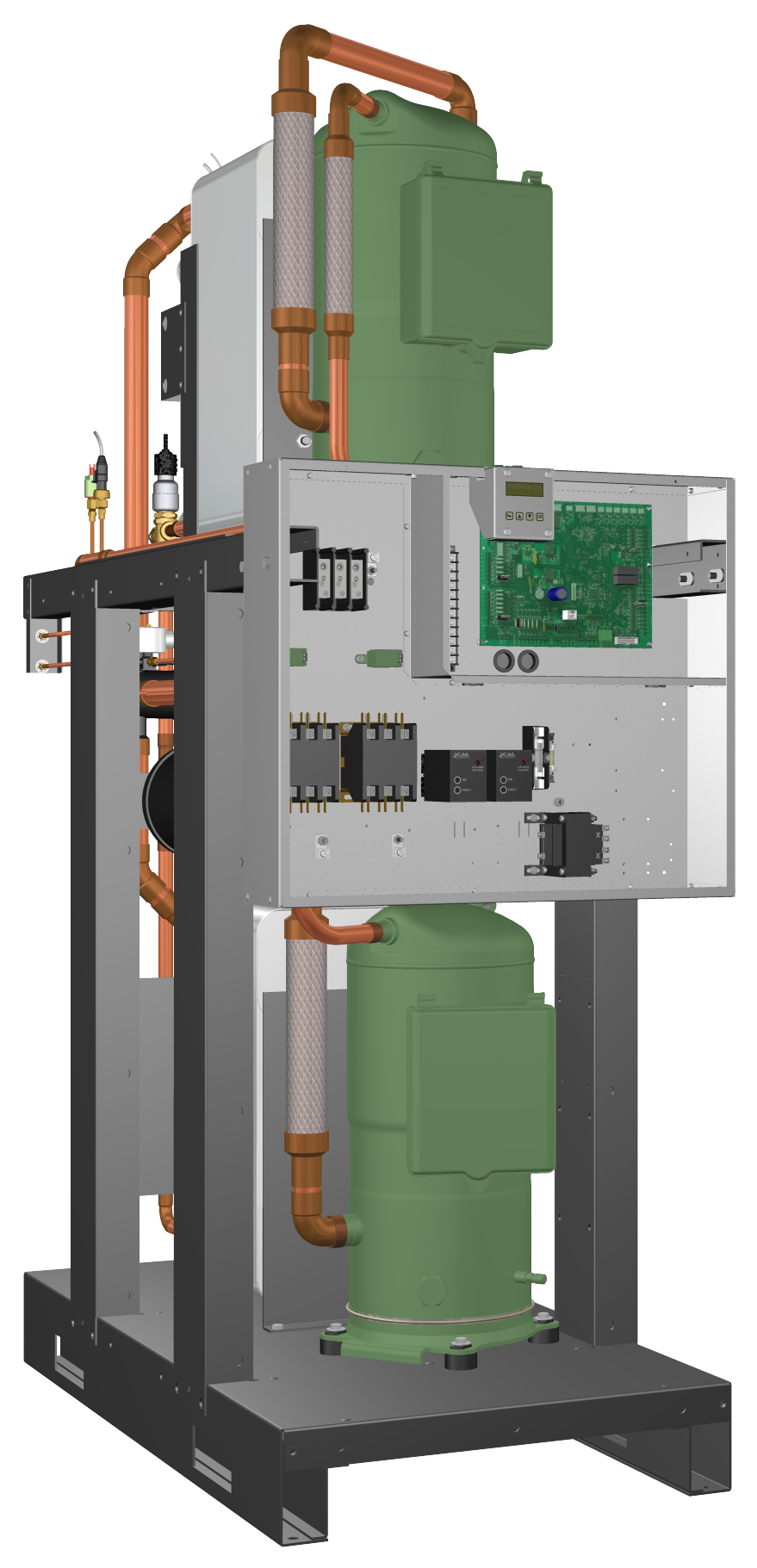

Nordic® W Series Commercial Geothermal Heat Pump
Our W Series Commercial geothermal heat pump is our largest heat pump designed for hot water production in commercial buildings. It is ideal for large-scale radiant in-floor heating applications, swimming pool heating, and ice rink cooling. It’s available with a reversing valve for heating and cooling in a single unit, and comes with integrated phase protection as a standard feature. The W Series Commercial is available in capacities from 9 tons up to 81 tons. Typically several medium-sized units are selected and installed in parallel.
Quick Facts About Our Commercial Liquid-to-Water Heat Pump
|Distribution Type||Radiant in-floor, fan coils|
|Capabilities||Heating, cooling, and domestic hot water|
|Loop Type||Open or closed loop|
|Size||9 to 81 tons|
Features and Available Options
- Available in either hot water only, or reversible (hot and chilled water).
- Available in the following voltages: 208-3-6, 460-3-60, 575-3-60, 380-3-50
Resources for Geothermal Professionals
|W Series Commercial Manuals|
|002517MAN-01 - Commercial-WWH-Series-90-100|
