This large-scale geothermal water-to-water heat pump gathers heat from the ground and distributes it through large commercial buildings via in-floor heat or fan coils. The process can also be reversed to provide cooling in the summer time.

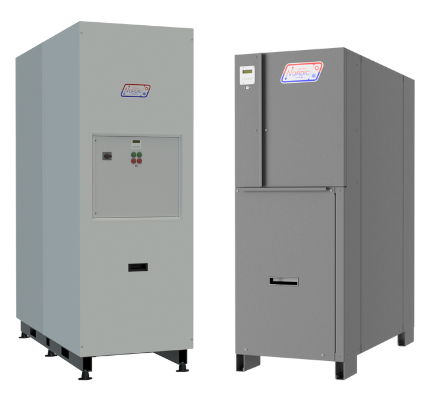

Nordic® W Series Commercial Geothermal Heat Pump
Our W Series Commercial geothermal heat pump is our largest heat pump designed for hot water production in commercial buildings. It is ideal for large-scale radiant in-floor heating applications, swimming pool heating, and ice rink cooling. It’s available with a reversing valve for heating and cooling in a single unit, and comes with integrated phase protection as a standard feature. The W Series Commercial is available in capacities from 9 tons up to 81 tons. Typically several medium-sized units are selected and installed in parallel.
Quick Facts About Our Commercial Water-to-Water Heat Pump
| Quick Facts | |
|---|---|
| Distribution Type | Radiant In-Floor or Fan Coils |
| Capabilities | Heating, Cooling and Domestic Hot Water |
| Loop Type | Open or Closed Loop |
| Size | 9 to 81 tons |
| Configuration | Horizontal |
| COPh | 3.26 to 4.80 |
| Certifications | TUV |
Features and Available Options
- Available in either hot water only, or reversible (hot and chilled water).
- Available in the following voltages: 208-3-6, 460-3-60, 575-3-60, 380-3-50
Resources for Geothermal Professionals
| W Series Commercial Manuals |
|---|
| 002642MAN-01 - Commercial WWH-Series Single Compressor 90/100/120/140/180/235 |
| 002097MAN-04 - Commercial WWH-Series Dual Circuit 150-1000 |
